R3X-2 Pendulum Squat Machine
Price range: 1964,00 € through 2352,00 € + VAT
Description

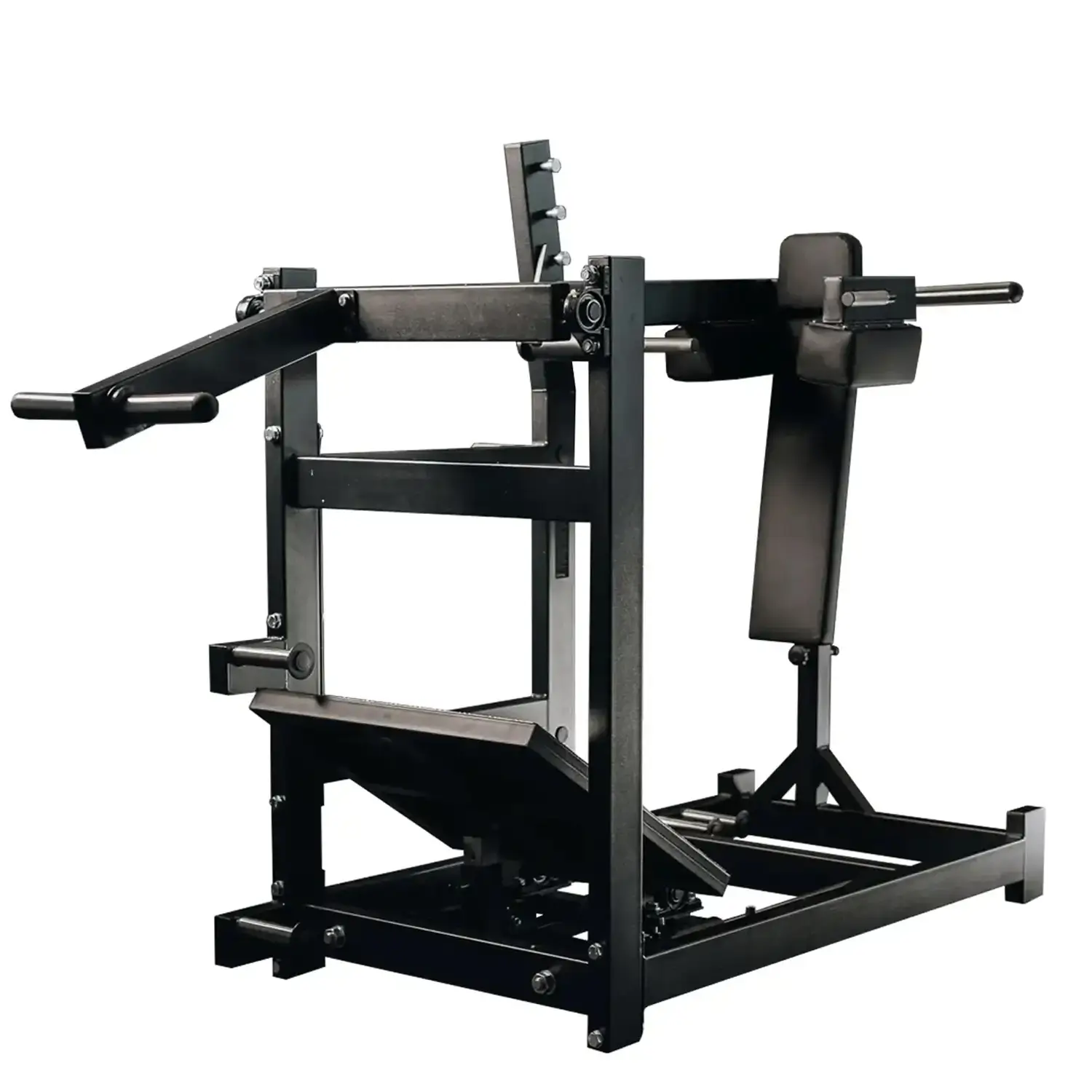

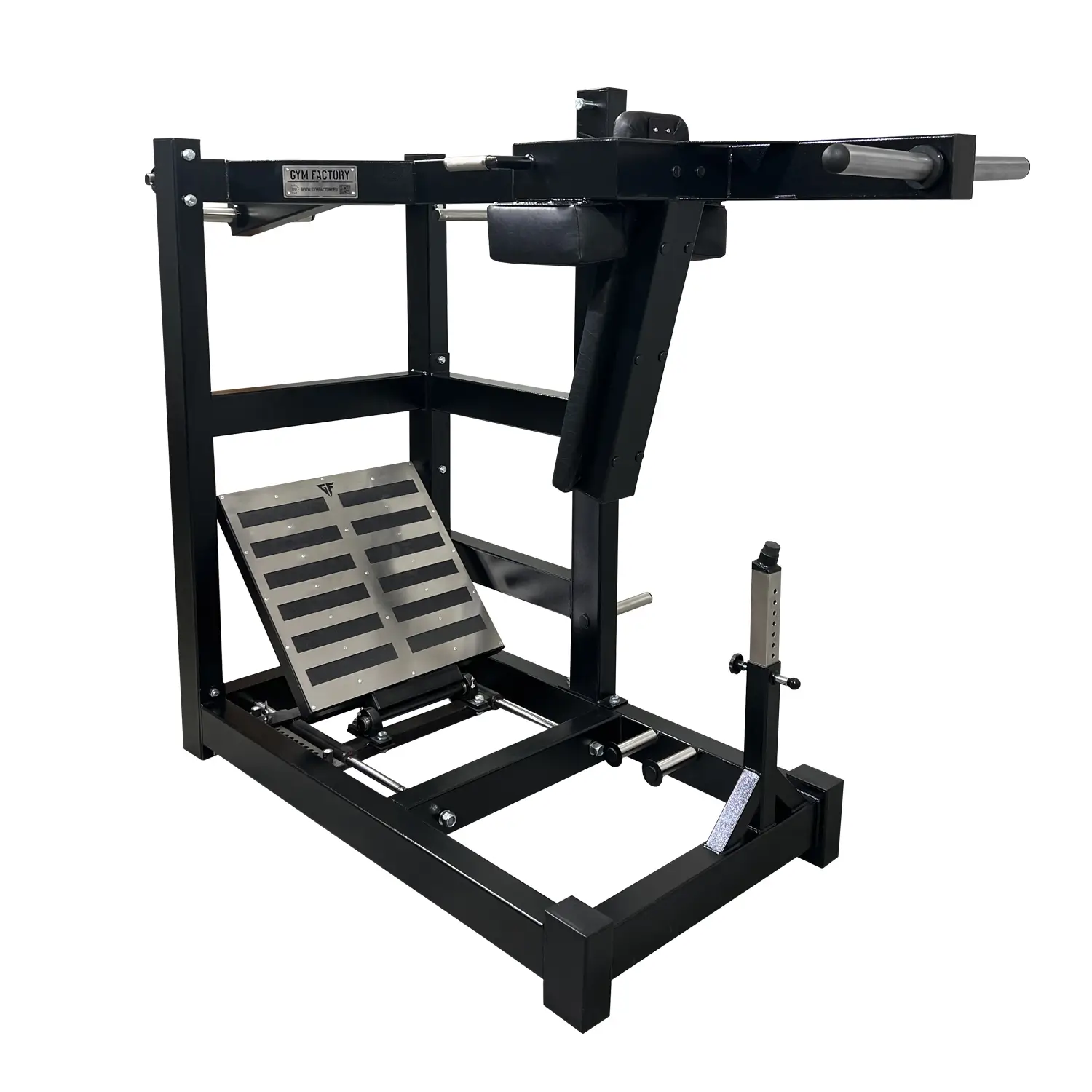

R3X-2 pendulum squat machine is based on the R3X model and retains the same controlled pendulum movement path. The main difference is an additional attachment point on the opposite side of the lever for counterweight plates and resistance bands. This system provides more options for adjusting resistance and how it changes throughout the movement.

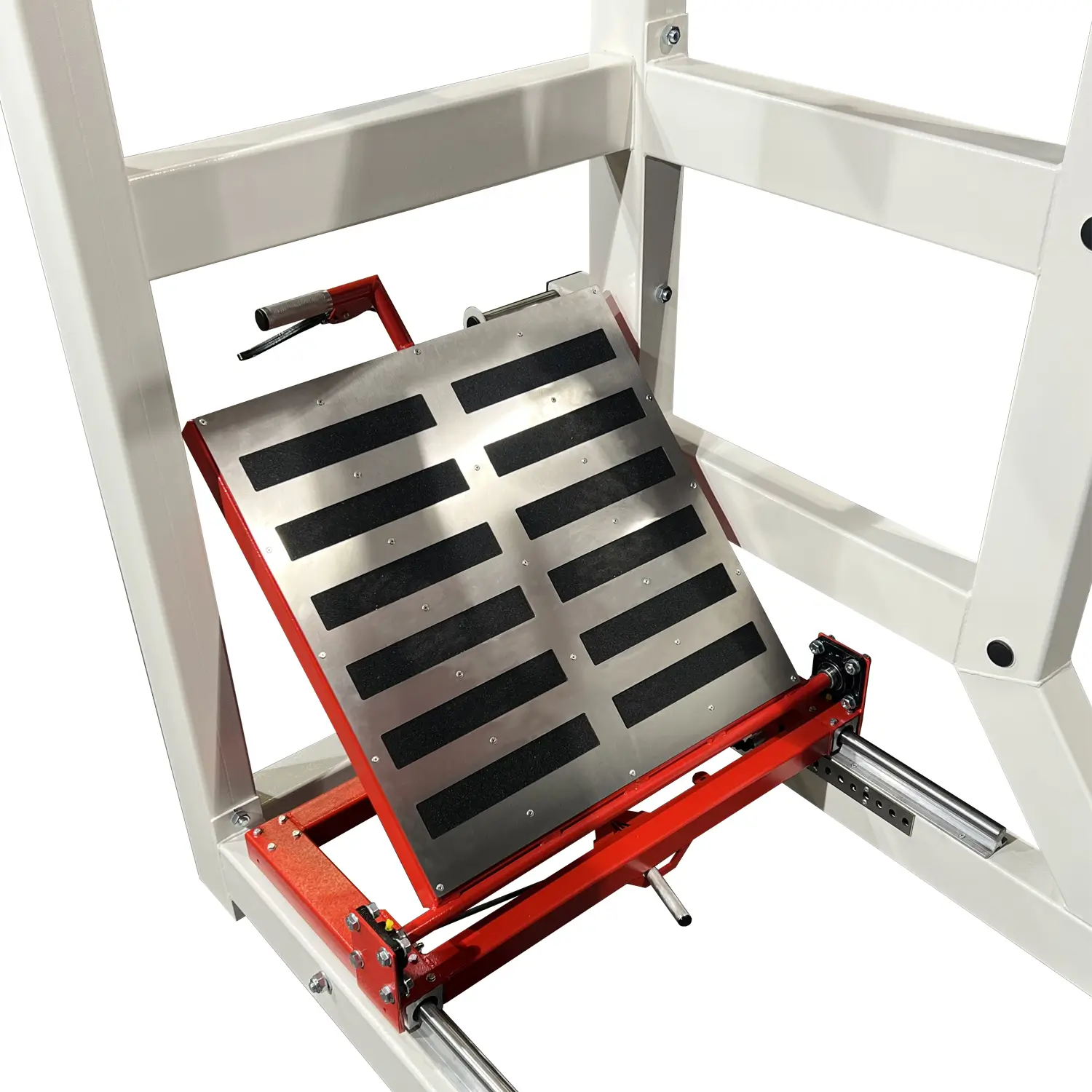

The foot platform can be moved forward or backward—closer to or farther from the user—and its angle can be adjusted separately. These adjustments allow the machine to be adapted to the user’s height, body structure, and preferred squat variation. The feet can be positioned narrower or wider, while changing the platform distance and angle helps select a comfortable squat depth and adjust resistance distribution across the muscles.

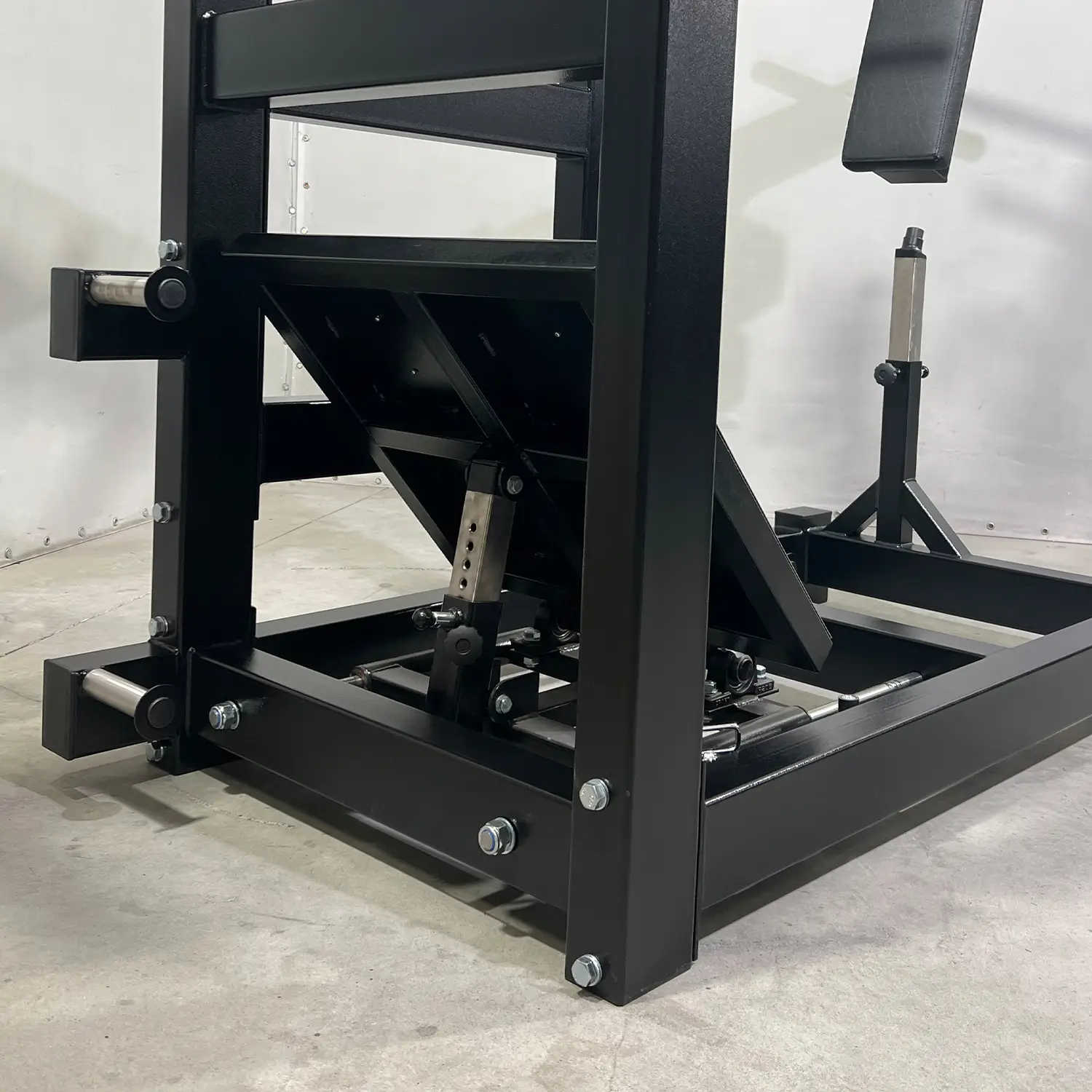

Weight plates placed on the additional loading point act as a counterweight and reduce the resistance lifted during the exercise. This allows the machine to be adapted for lighter training, technique practice, or gradual load progression. Resistance bands can be used to modify the resistance curve and, depending on their attachment setup, increase or reduce resistance during different portions of the movement.
Squats primarily target the quadriceps, glutes, and hamstrings. The adjustable platform allows users to change their foot position and shift the emphasis between these muscle groups. Calf raises can also be performed on the platform.
Multiple starting positions allow users to select a suitable starting height and range of motion. The wrist-controlled locking handle is used to unlock and secure the mechanism while also providing support during the exercise. A rear safety stop helps control the lower movement limit.
Specifications:
Adjustable foot platform angle for customized squat depth and emphasis
Adjustable foot platform distance for individual stance setup
Counterweight system to reduce resistance throughout the movement
Attachment points for resistance bands to modify load curve
Multiple starting position options for movement setup
Wrist-controlled locking mechanism with integrated support handle
Rear safety stop for controlled range of motion
Compatible with 50 mm weight plates
Durable powder coating for long-lasting protection
High-quality, wear-resistant leather upholstery
Knurled stainless steel handles, 30 mm in diameter, for a secure grip
Dimensions (cm):
Length: 275
Width: 113
Height: 200
Metal model (mm) / Maximum load capacity (kg) / Weight (kg):
100 x 50 x 3mm / 350 kg / 206 kg
120 x 80 x 3mm / 450 kg / 260 kg
Metal Colors
Leather Colors
BLACK
RED
BROWN
GREY
BLUE
Coating options
Structural powder coating
This finish features a slightly shiny, textured surface that resembles an orange peel. It adds a unique visual effect while also providing durability and resistance to scratches. The texture helps mask small surface imperfections, making it a practical and aesthetically pleasing option for metal surfaces.
- Textured & Shiny
- Highly Scratch-Resistant
- Conceals Imperfections
Structural powder coating
Structural
Sand texture powder coating
This finish has a fine, matte texture with a slightly grainy feel. It provides a sleek and modern look while maintaining good durability. However, compared to structural paint, sand paint is slightly less resistant to scratches due to its smoother surface. It enhances grip, reduces glare, and works well for applications where aesthetics and a softer texture are preferred.
- Smooth & Matte
- Less Scratch-Resistant
- Grip-Enhancing
Sand texture powder coating
Sand
Clear coat powder coating
A transparent powder coating that enhances the natural appearance of the metal while providing a protective layer. It adds a subtle gloss without altering the original color or texture of the metal. Clear coat paint increases resistance to corrosion, scratches, and environmental factors, ensuring long-lasting durability while maintaining a raw, industrial look.
- Natural Look
- Protective Layer
- Slightly Glossy Finish
Clear coat powder coating
Clear
