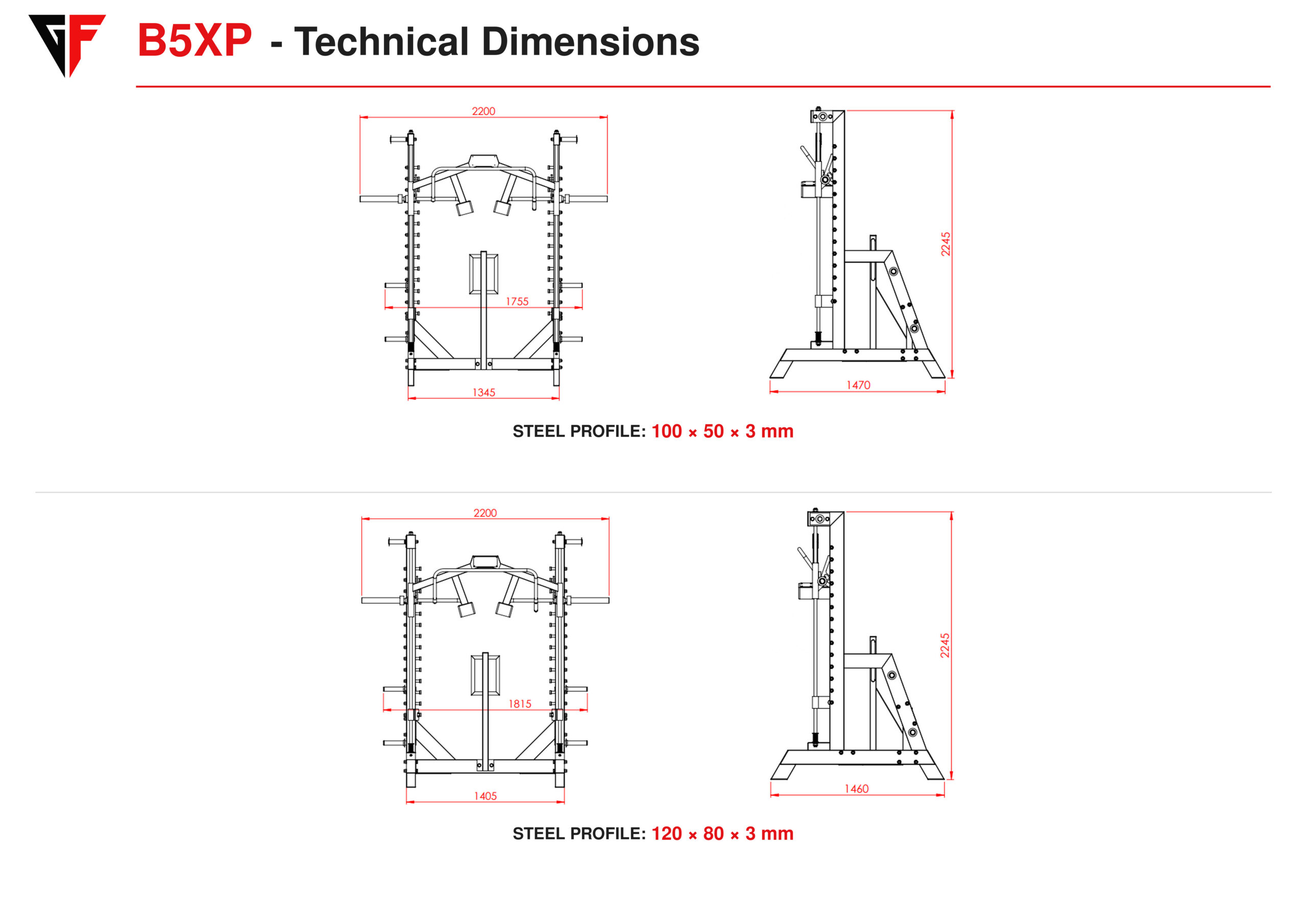

B5XP Smith squat machine technical dimensions drawing showing the equipment from multiple angles with overall measurements and steel profile specifications

B5XP Smith Squat Machine

Price range: 2155,00 € through 2470,00 € + VAT

B5XP Smith Squat Machine

Subtotal

Frame surface finish

VAT

Total amount

SKU: B5XP Category: Brand:
Category:

Description

B5XP smith squat machine is an upgraded version of the classic Smith machine, designed for squats, stationary lunges, and other lower-body exercises. Its guided movement path provides stability and allows users to focus on the quadriceps, glutes, and hamstrings.

The long padded shoulder supports help maintain a stable body position, reduce pressure on the neck, and prevent sliding during deep or heavy squats. When the weight is lifted, the hooks disengage automatically, while a separate locking handle allows the movement to be stopped and secured quickly. Front handles provide additional support when preparing for and performing the exercise.

Resistance band attachment points are integrated into the upper section of the frame. Attached bands reduce the effective load at the bottom of the squat and gradually increase resistance as the user rises. The machine is suitable for commercial gyms, specialized strength-training facilities, and spacious home gyms.

Specifications:
-integrated Olympic 50 mm guided barbell with multiple locking positions;
-compatible with 50 mm weight plates;
-durable powder coating for long-lasting protection;
-stainless steel bar with knurled grip positions.

Dimensions (cm):
Length: 147
Width: 220
Height: 225

Metal model (mm) / Maximum load capacity (kg) / Weight (kg):
100 x 50 x 3 mm / 350 kg / 163 kg
120 x 80 x 3 mm / 450 kg / 203 kg

Metal Colors

BLACK (9005)

RED (3000)

BROWN (8017)

GREY (7040)

CLEAR COAT METAL

Leather Colors

BLACK

RED

BROWN

GREY

BLUE

Coating options

Gloss structure
Gloss structure

Gloss structure

This finish features a slightly shiny, textured surface that resembles an orange peel. It adds a unique visual effect while also providing durability and resistance to scratches. The texture helps mask small surface imperfections, making it a practical and aesthetically pleasing option for metal surfaces.

- Textured & Shiny
- Highly Scratch-Resistant
- Conceals Imperfections

Gloss structure

Structural

Matte sand texture
Matte sand texture

Matte sand texture

This finish has a fine, matte texture with a slightly grainy feel. It provides a sleek and modern look while maintaining good durability. However, compared to structural paint, sand paint is slightly less resistant to scratches due to its smoother surface. It enhances grip, reduces glare, and works well for applications where aesthetics and a softer texture are preferred.

- Smooth & Matte
- Less Scratch-Resistant
- Grip-Enhancing

Matte sand texture

Sand

Lacquered natural metal
Lacquered natural metal

Lacquered natural metal

A clear gloss lacquer applied directly to the natural metal, with no colored paint. The metal's texture and machining marks stay visible.

- Natural Look
- Protective Layer
- Slightly Glossy Finish

Lacquered natural metal

Lacquered

Close explanation overlay

Gloss structure

Gloss structure

Gloss structure<br /> <br /> This finish features a slightly shiny, textured surface that resembles an orange peel. It adds a unique visual effect while also providing durability and resistance to scratches. The texture helps mask small surface imperfections, making it a practical and aesthetically pleasing option for metal surfaces.<br /> <br /> - Textured & Shiny<br /> - Highly Scratch-Resistant<br /> - Conceals Imperfections

Matte sand texture

Matte sand texture

Matte sand texture<br /> <br /> This finish has a fine, matte texture with a slightly grainy feel. It provides a sleek and modern look while maintaining good durability. However, compared to structural paint, sand paint is slightly less resistant to scratches due to its smoother surface. It enhances grip, reduces glare, and works well for applications where aesthetics and a softer texture are preferred.<br /> <br /> - Smooth & Matte<br /> - Less Scratch-Resistant<br /> - Grip-Enhancing

Lacquered natural metal

Lacquered natural metal

Lacquered natural metal<br /> <br /> A clear gloss lacquer applied directly to the natural metal, with no colored paint. The metal's texture and machining marks stay visible.<br /> <br /> - Natural Look<br /> - Protective Layer<br /> - Slightly Glossy Finish

Videos

Machine Overview VideoWatch on YouTube
